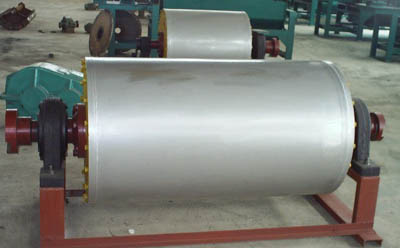

CTDG- Dry Drum Magnetic Separator

CTDG-Series Dry Magnetic Separator is a new type high-efficiency magnetic separation equipment for materials with big size, such as lump iron ore,mill sales and other ferrous metals.

Strong Induction Intensity: The equipment has high magnetic induction intensity to attract the ore with size up to 350mm, and can be applied with various model belts according to the customers demands.It is mainly used at the preseparation stage to rejecting excess gangues.
Maximise Recovery of Ferrous Metals
High performance magnet design to suit your application (ferrite, rare earth) to provide the most effective and efficient method of metal recovery.
Minimise Maintenance
Wear resistant non-magnetic drum skin. Permanent magnet drums are built using high intensity non-deteriorating material, so not only is no power required to the magnet, but it will also provide maximum magnetic force for the lifetime of the machine. High permeability magnetic circuit to minimise stray magnetic fields, prolonging their life.
Optimise Throughput
Deep field magnet systems penetrate through the product burden and remove the maximum amount of ferrous metal. This allows for a higher throughput of material to be separated efficiently.

Main Dimension and Technical Data

Specifications & Models

CTDG
1515

CTDG
?1214

CTDG
1210

CTDG
1010

CTDG
0812

CTDG
0810

CTDG
0808

CTDG
?0606

CTDG
0505

Technique performanc

Drumdiameter(mm)

1500

1250

1250

1000

800

800

800

630

500

Drum length(mm)

1800

1600

1150

1150

1400

1150

950

750

600

Conveying belt width(mm)

1600

1400

1000

1000

1200

1000

800

650

500

Conveying belt speed (m/s)

1.6-2.5

1.6-2.5

1.6-2.5

1.6-2.5

1.6-2.5

1.6-2.5

1.0-2.5

1.0-2.0

1.0-2.0

Magnetic induction intensity on drum surface in separation zone(mT)

260-300

   250-300

   250-300

   250-(400)

   240-300

   160-350

   160-350

   150-350

   150-300

Ore diameter
upper limit (mm)

  350

  350

  350

   250

   200

   200

   200

   70

   50

Capacity(t/h )

 600-800

 500

 300-350

  300

  400

  250

  200

  80

  50

Electromotor power( kw)

  30

  130

  11

  45

  15

  11

  18.5

  11

  5.5
